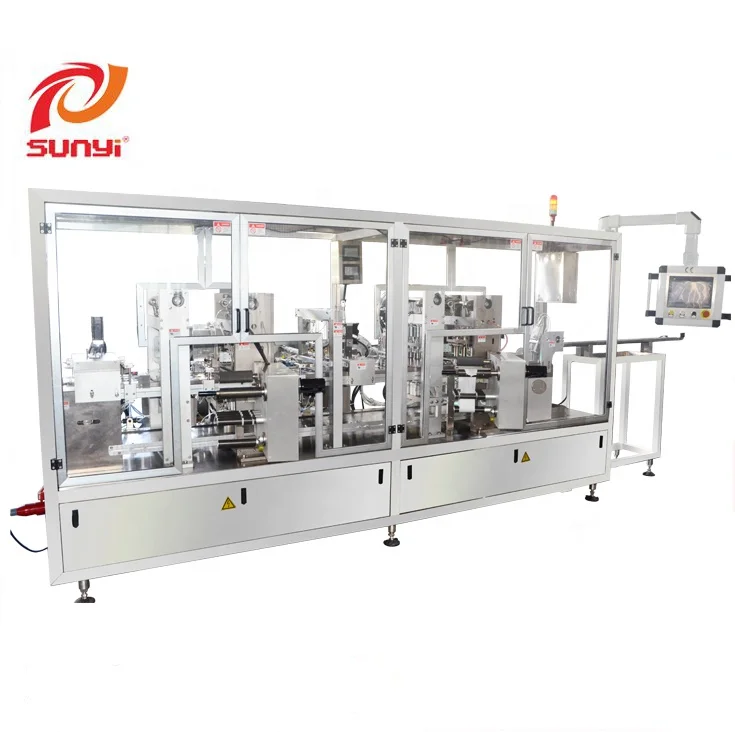

Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine

Name: Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine
Brand: jiangsu sunyi machinery
Price: 55 USD

Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine Manufactures

MOQ : 1 set

Price : USD 55,000 set

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 200000 pcs per month

Delivery Time : 80 working days

Packaging Details : wrapped with plastic films and packed in a box

Brand Name : jiangsu sunyi machinery

Model Number : four lanes nespresso filling sealing machine

Certification : ISO 9001, CE, SGS

Place of Origin : China jiangsu

Product name : nespresso coffee capsule filling sealing machine

Productivity : 200-360 pcs per minute

Driven type : pneumatic-electric

Filling type : servo auger control filling

Filling accuracy : ±0.2g

Warranty : 1 year

Material : 304 stainless steel

Filling material : powder

Contact Now

Product Description

Sunyi Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine  is fully automatic and muti-function coffee machine,which is higher-speed and lower-noise than ordinary coffee capsule fillin g machine.In China,we have 9-year history in the field since 2011.We Ceaselessly,we create more and more new production by lots of effort on research.Gradually,we form Sunyi brand of ourselves.The maximum spe ed of four lanes capsule filling machine can reach 160 capsules per minute.It is worth mentioning that the machine is operated through a user-friendly touchscreen(HMI),where all the machine parameters can be ac cessible during machine is runing.

We welcome customers to order more than one set at a time.The price in stock is quite cheaper than ordinary machine to a great extent.

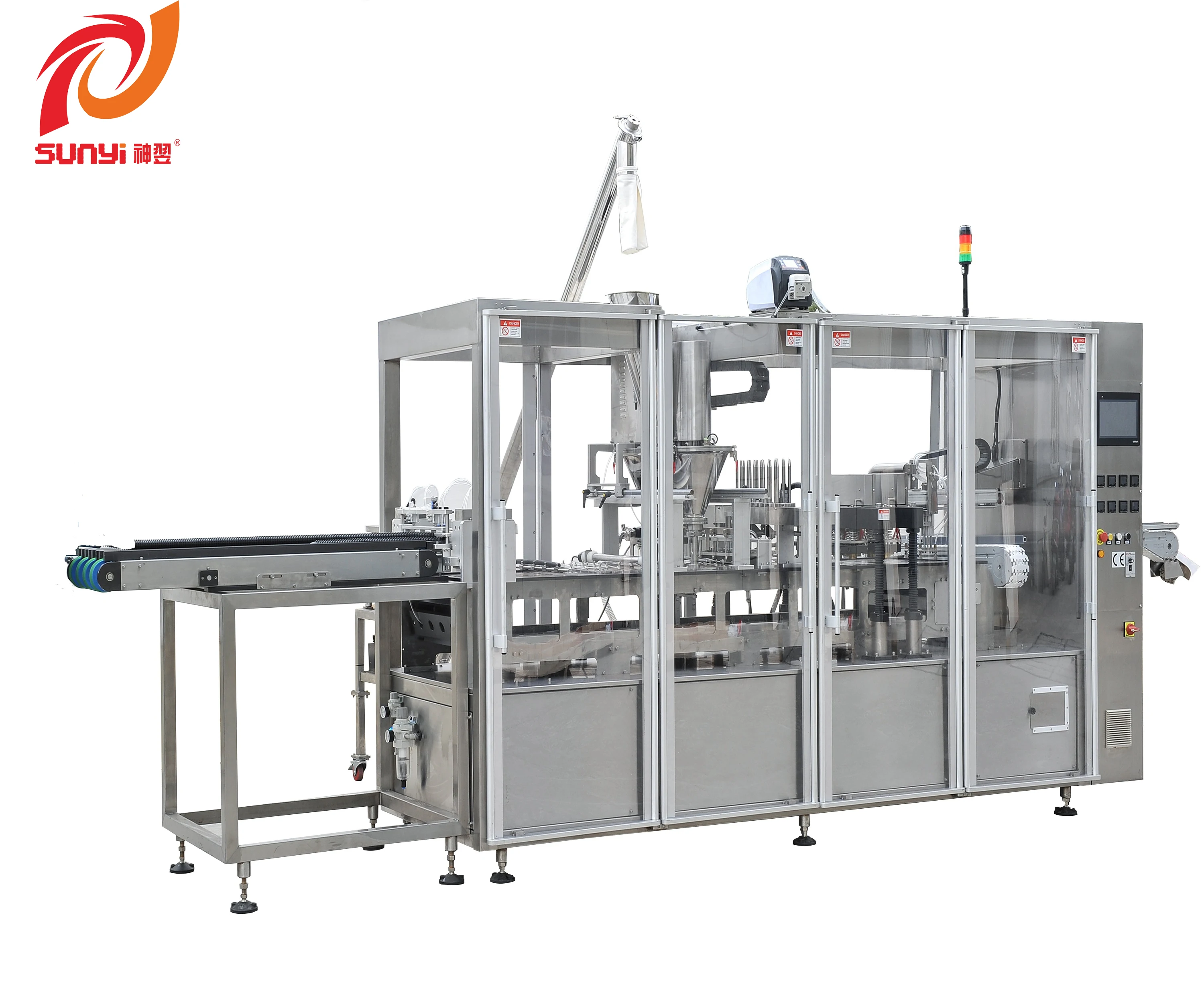

Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine

Main Function

*Easy clean hopper system,change material type in a short time.*Running brush and vacuum collect dust machine clean machine's mold,ensure machines' stable running at Non-dust condition.
*All production process with visualization on the touchscreen,continuously monitoring all relevant parameters.
*Special design diagonal roll film unwind system,will have 15%-30% less material consumption compared with conventional methods.
*camera sensor to check lids sealing,if is not good,it will be rejected.

Applicable range

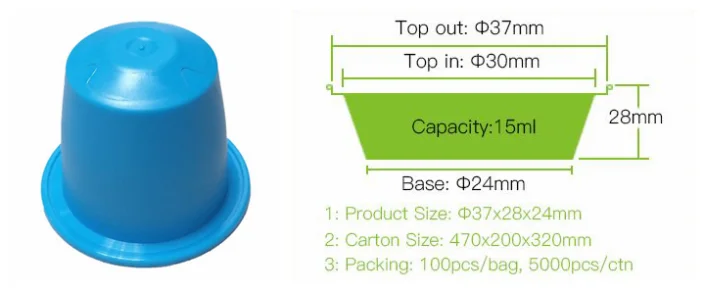

The machine is used to make nespresso coffee capsule,it can fill coffee powder,milk powder,tea,instant powder and other food materials.

Technical Parameters
Filling weight range:	0-20g
Filling accuracy:	0.1-0.3g
Max speed:	160Cup per minute
Hopper capacity:	10-24L
Control system:	OMRON SCHNEIDER ROCKWELL
Displayer:	10 Inch touchscreen
Power supply:	220V/380V
Dimension:	4880mm1000mm2100mm

Certifications

Machine details

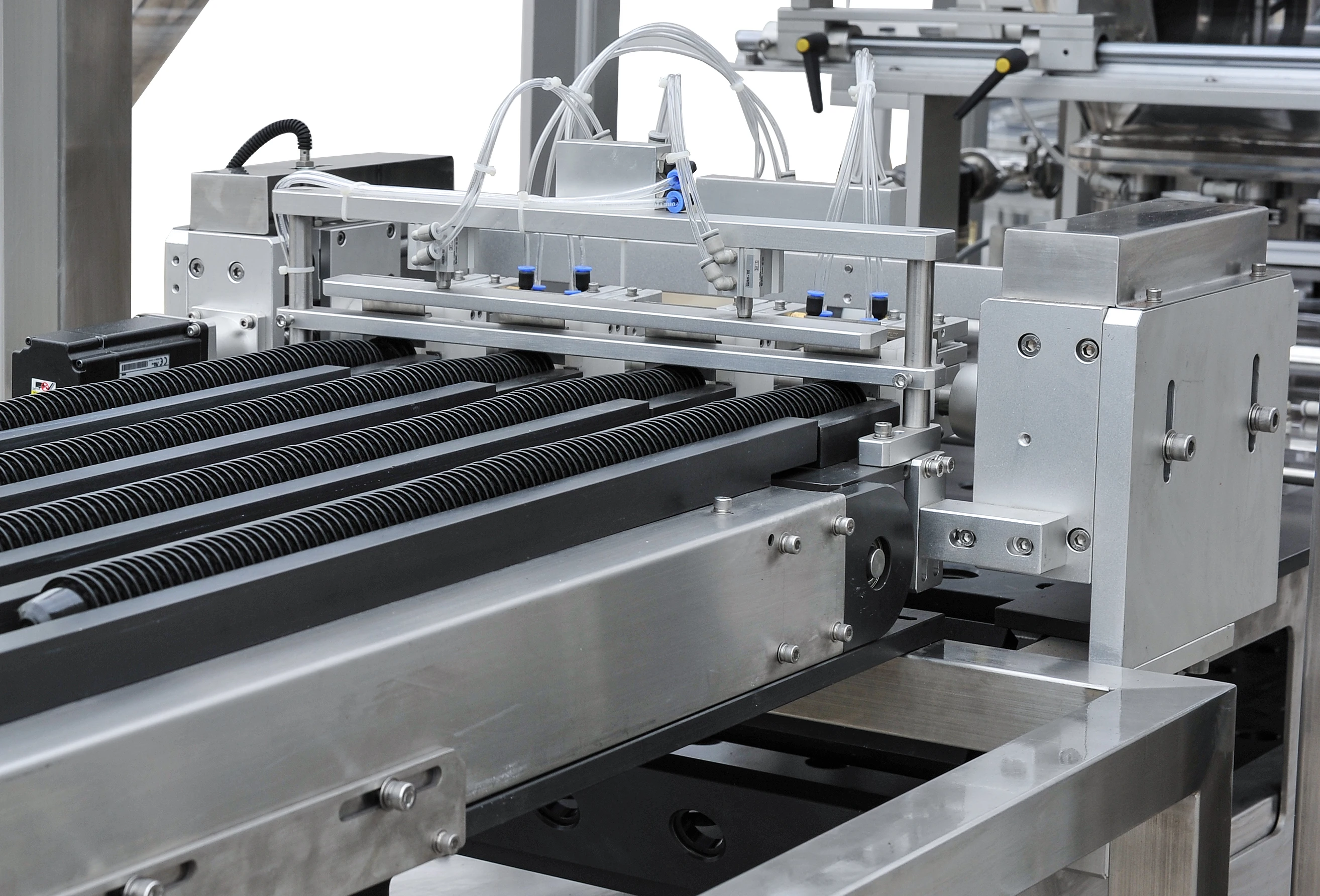

Capsule Loading

Putting unprocessed capsule cup in the four lanes manually.The capsules cup will be trans -fered automatically to the next part when the machine is started.

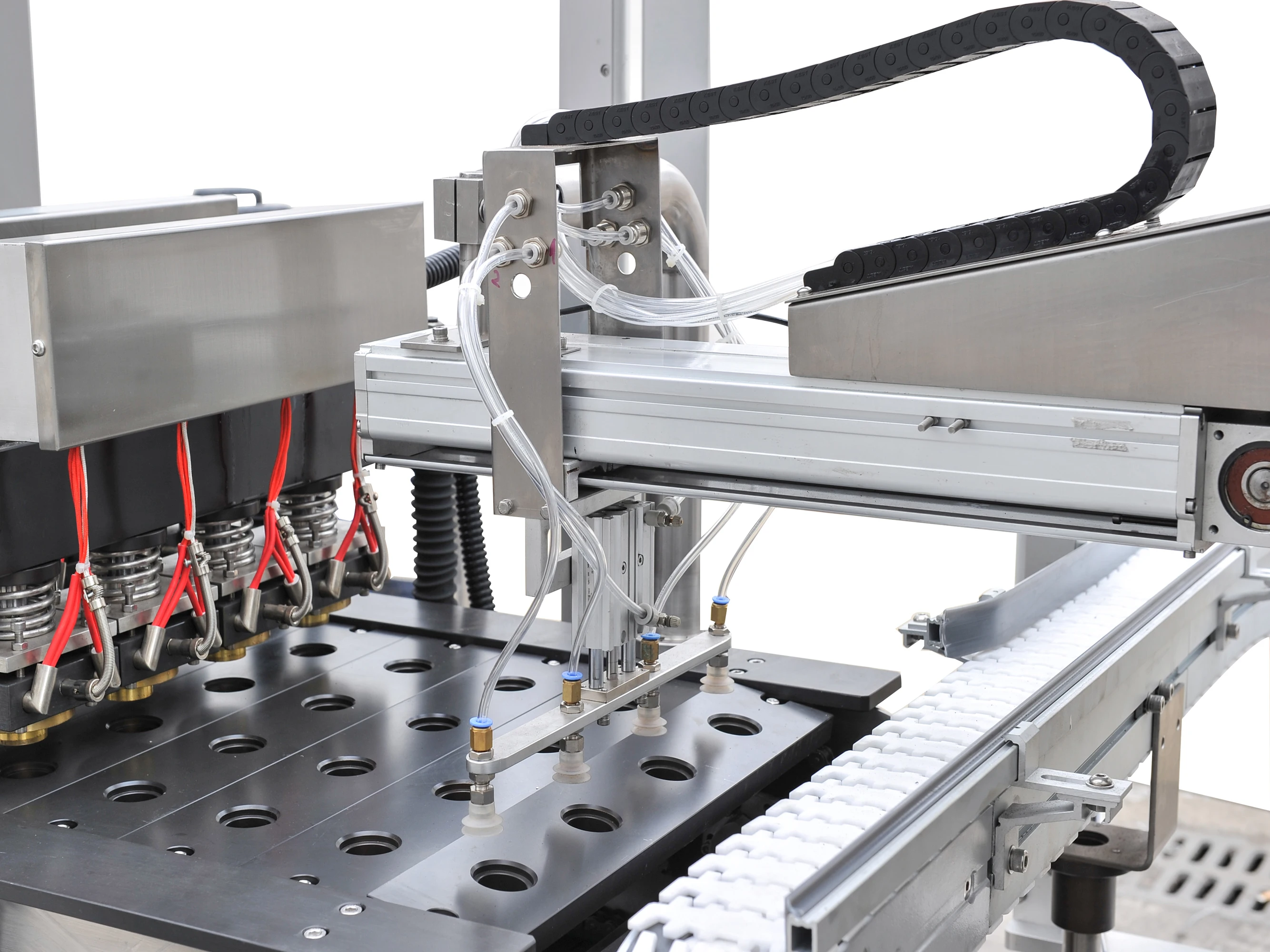

Capsule Conveyor Belt

Manipulator will grasp the production and put them on the conveyor belt.When capsule is tra -nsfered to the part.The whole manufactur ing process will end.

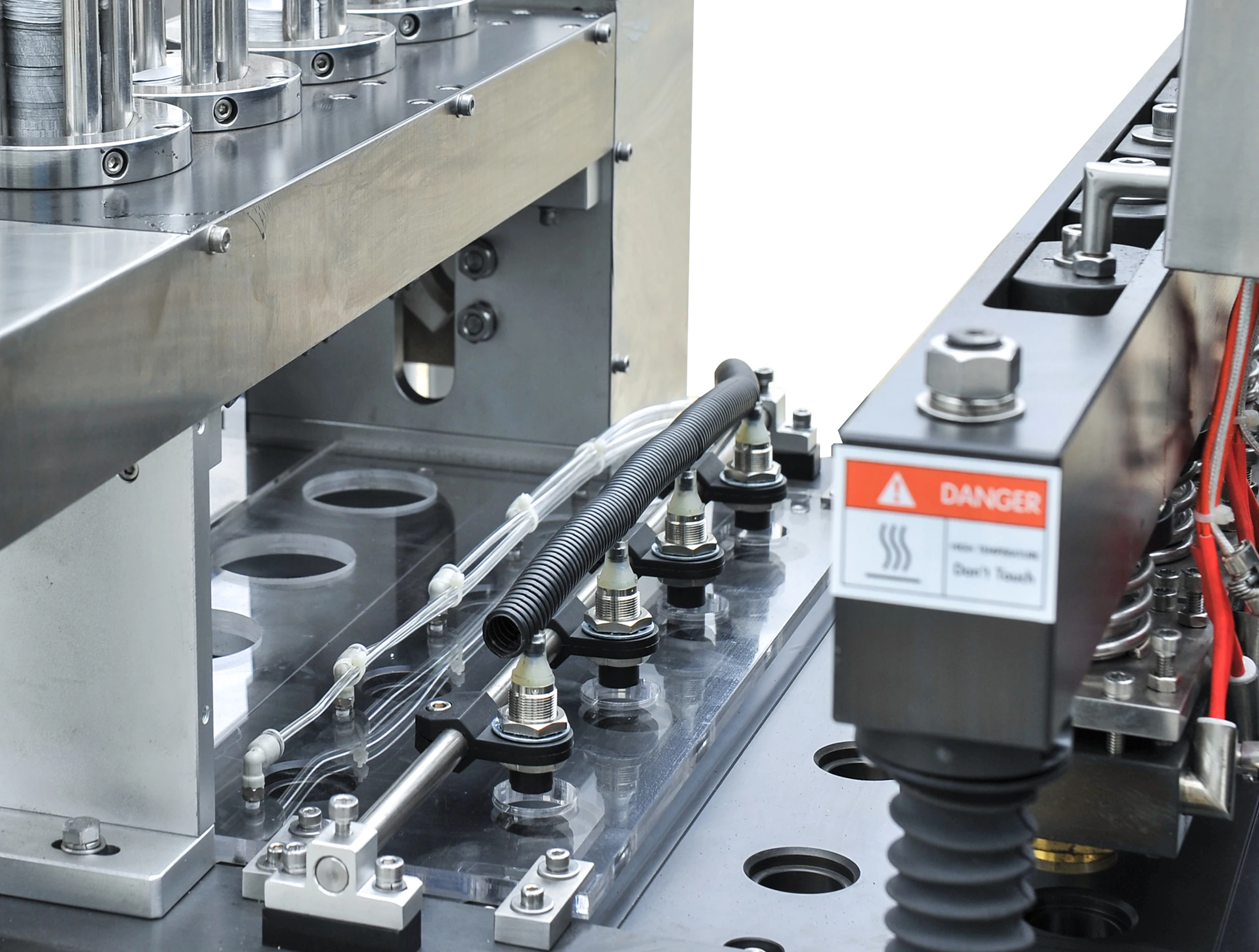

Capsule Film Sensor

When the capsules is transfered here,the caps ule film sensor is used to judge whether the fil -m exists or not.If yes,it will go on to next part, which is important part before sealing.

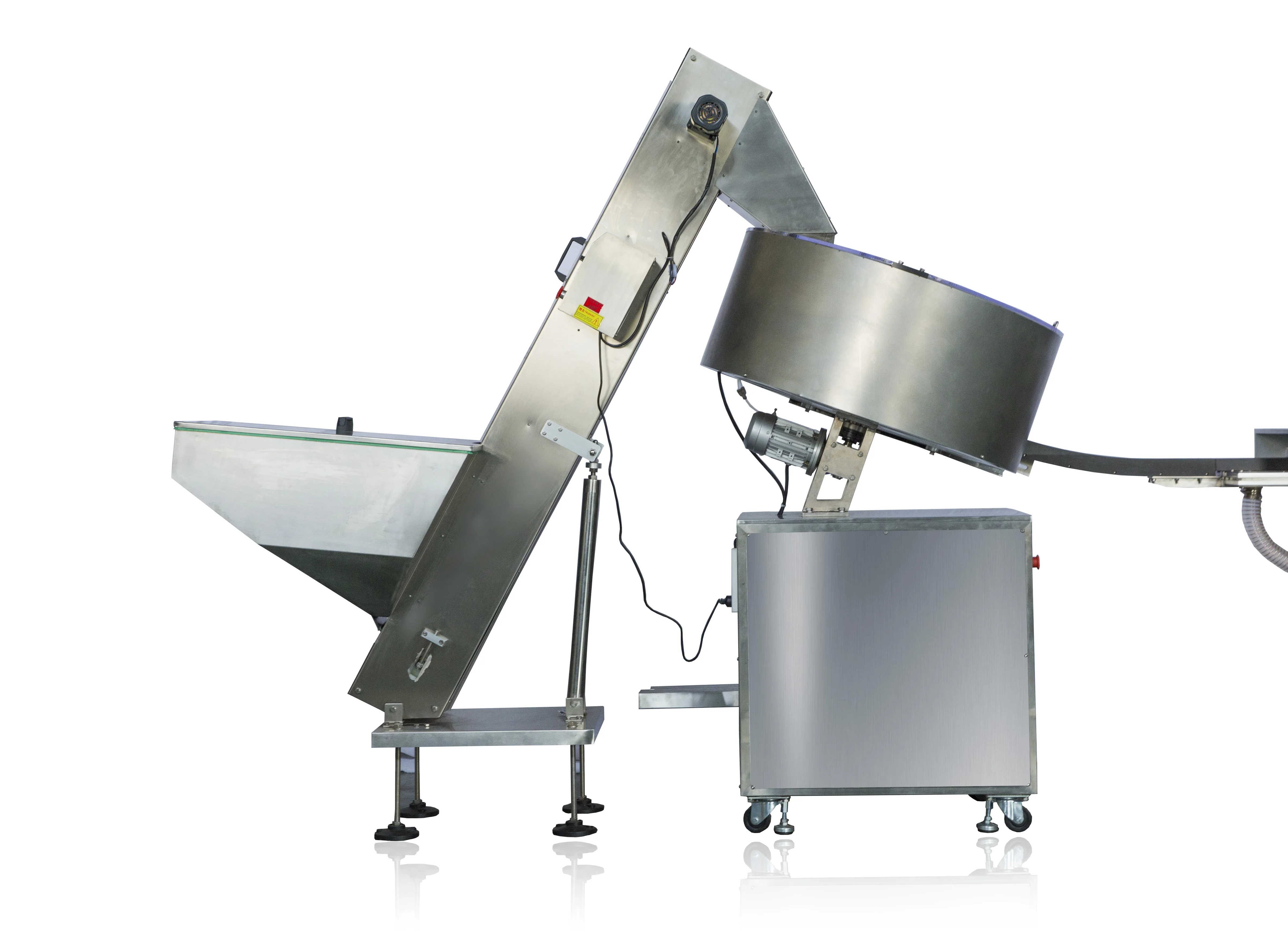

Rotary barrel

Rotary barrel is used to put cups in order auto matically.The function part is not neces sary for customers,which is chosen by customers according to different needs.

Our Service

Perfect Technical support and service system

We have a professional technical consulting,training and after-sales service team,12 months product warranty periiod,as well as within 24 hours rapid after-sales service system.

Packing & Delivery

Wooden Case Related

*clean machine and Vegetable oil protect machine not rust
